DNC Software, EasyDNC Remo version 5, is an easy to use DNC-to-CNC file transfer program specifically designed for modern versions of MS Windows.

64 bit DNC Software created specifically for the very latest versions of Windows 10 and 11. It's automatically backward compatible with older 32bit versions of MS Windows - but on a 64 bit computer 'Remo DNC' runs in true 64bit mode making full use of the latest hardware and multi-core processors.

EasyDNC Remo is Small enough to work on low powered tablets, laptops and older computers. But this version of EasyDnc is a modern, 64bit, multi-tasking 'MDI' (Multi Document Interface) DNC Program capable of serving a number of CNC machines at the same time.

The DNC Program has big buttons making it ideal for use on Touch Enabled Displays and Windows Tablets. Use a finger to Drag and Drop file icons from Windows into EasyDNC without using a keyboard.

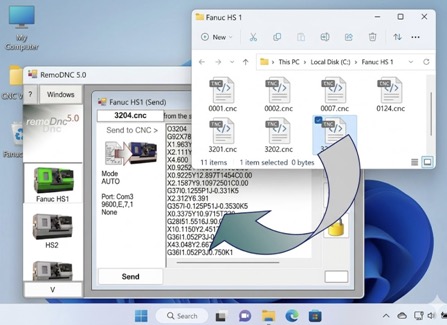

Drag Drop and Send DNC file to CNC

What DNC are you looking for ?

What DNC are you looking for ?

small, easy to use, low cost DNC
Small EasyDNC Logo

or Powerful Multi-CNC Server?
Small RemoDNC Logo

Simple, Low cost DNC?

Smaller RemoDNC Logo

Or powerful Multi-CNC Server?

Or both? - Remo DNC Software is Small enough to work on low powered tablets, laptops and older computers. But this version of easyDnc is a modern, 64bit, multi-tasking 'MDI' (Multi Document Interface) DNC Program.

It's still compatible with older 32bit versions of MS Windows - but on a 64 bit processor 'Remo DNC' runs in true 64bit mode making full use of the latest hardware and multi-core processors.

EasyDNC Remo can manage dozens of separate CNC Profiles and switch instantly from one CNC to another or open more than one at the same time serving multiple CNC machines at the same time.

As well as quick and simple File-Transfer to and from cnc memory - the DNC Program can also Drip-Feed with Stop, Pause, Resume, Restart from any line, instant Rewind and even Single Step through individual lines of the CNC program.

Auto Setup - RemoDNC also includes 'Auto Detect' options which can often setup your computer's DNC parameters automatically.


Take the quick 2 minute tour Quick DNC Tour
Browse or download full user guide DNC User Guide

DNC for older versions of Windows? Link to Old EasyDNC 4.7


60 Day Free Trial
The trial period is fully functional. No file size limits so you can test long DNC/Drip Feed processes. Download Now.

No Contract
EasyDNC is licenced to the computer - not the number of CNC Machines. There's also no annual or other periodic renewal or maintenance/support contract. Buy once, use forever. We don't bill you for updates every time Microsoft releases a new version of Windows.

Windows 64bit
EasyDNC Remo is a true 64bit application created using the very latest software development tools. Compatible with the very latest 64bit Windows 10 and 11. But also downward compatible with older versions of Windows 8, 7 and XP.

EasyDnc is now also available for Apple OS X.
For iMac, Mac, Macbook, Macbook Pro and MacBook Air. EasyDNC for OSX

Heidenhain
Remo brings the Heidenhain Blockwise protocol to EasyDNC for reliable high speed drip feeding

XModem
Improved reliability for Haas and other similar CNC Machines

Ethernet and WIFI RS232
Remo can directly support Ethernet RS232 Port Server Devices via TCP/IP without using virtual com ports. Using low cost ethernet and WiFi serial devices it's now quite easy to set up an ethernet or Wireless DNC System

REMOte Mode
In many cases CNC operators can transfer files to and from the CNC without leaving the CNC console. No more running or shouting across the shop or crowding around the computer.

Of course it would be great if you chose our DNC Application - but even if you're using somebody else's DNC Apps please bookmark this page and feel free to use the CNC Parameters below. An open service to the CNC Community.

CNC / DNC Settings for Fanuc 6

Acramatic
Amada
Anilam
Bosch
Boss
DeltaDynaPath
Fagor
Fanuc
. . . Fanuc Oi
. . . Fanuc OM
. . . Fanuc OP
. . . Fanuc OT
. . . Fanuc 6
. . . Fanuc 10
. . . Fanuc 11
. . . Fanuc 12
. . . Fanuc 15
. . . Fanuc 16
. . . Fanuc 18
. . . Fanuc 21i
. . . Fanuc 21
Heidenhain
Hinumerik
Hitachi
Mazak
Mitsubishi
Okuma
Sinumerik
Traub
Yasnac

Parameter Value Comments
340  2
341  2
311  00011000
   00010110 = 600
 00010111 = 1200
 00011000 = 2400
 00011001 = 4800
 00011010 = 9600
TV Check  0 Never Enable TV Check
Punch Code  1 1=ISO
0 = EIA
Input Unit  0
Input Device 1  1
Input device 2  1

DNC/CNC Cable Connector Pinout (Full)

Cable shown here is the most common supporting xOn/xOff (DC1/DC3) flow control. But if your CNC is configured to use RTS/CTS (Hardware) flow control then see the alternative cable diagram here.
